2WD3 cylinder2500 cc8F + 2R

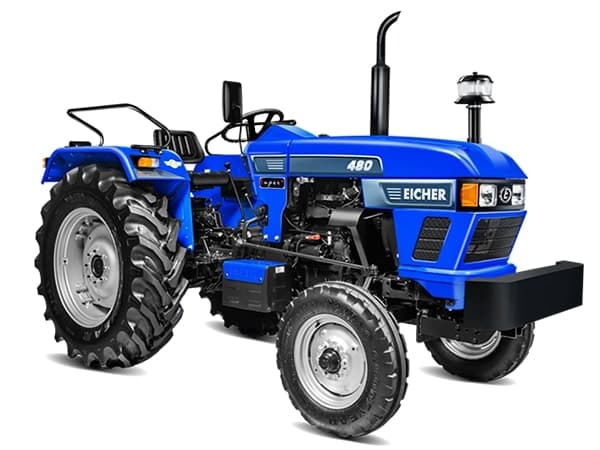

EICHER 480
Trusted 45 HP for everyday farming.
Price on request · ask the showroom
Key figures
At a glance
Power45hp
Lift capacity1650kgf
PTO540rpm
Cylinders3
Engine2500cc
Weight2042kg
Suited to
Manufacturer data
Full specifications
Published by Eicher for this model. These are the manufacturer’s own figures — ask us to confirm anything you intend to rely on.
ENGINE
| Power Range (HP Range) | 33.10 kW (45 hp) |
| Engine Make / Type | SIMPSON/ Water cooled |
| Cylinders | 3 |
| Cubic Capacity | 2500 cc (2.5L) |
| Fuel Injection Pump | Inline |
| Forward speed @ rated RPM | 32.31 kmph (with 14.9 x 28 rear tyres) |
TRANSMISSION
| Clutch Type | Single / Dual |
| Transmission Type | Center shift Option: Side shift Partial constant mesh |
| Number of Speeds | 8 Forward + 2 Reverse |
PTO
| PTO Type | Live, Six splined shaft |
| PTO Speed (Standard) | 540 RPM @ 1944 ERPM |
| PTO (Multi Speed & Reverse) | Optional |
HYDRAULICS
| Lifting Capacity (Lower links at horizontal position) | 1650 kgf |
| Three Point Linkage & Controls | Draft, Position and Response control Links fitted with CAT-2 (Combi Ball) |
BRAKES
| Brake Type | Multi disc oil immersed brakes |
STEERING
| Steering Type | Mechanical Steering Option: Power Steering |
TYRES
| Tyre Dimensions | 15.24 cm x 40.64 cm (6.0 x 16) Front 34.54 cm x 71.12 cm (13.6 x 28) Rear Option: 37.85 cm x 71.12 cm (14.9 x 28) Rear |
DIMENSIONS
| Overall Length | 3475 mm |
| Overall Width | 1700 mm |
| Overall Height | 2220 mm |
| Wheelbase | 1910 mm |
| Total Weight | 2042 kg |
CAPACITY
| Electricals | 12 V 75 Ah Battery |
| Fuel Tank Capacity | 46 L |
OTHER
| Accessories | Tipping trailer kit with Quick Release Coupler, Bumper, Drawbar, Mobile charger, Top link, Water bottle holder |
